The UltraAV switch is certified HDMI compliant, features a maximum throughput of 6.75Gbps and is compatible with all HDMI devices.

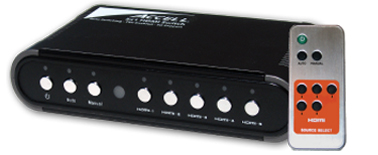

UltraAV 5×1 HDMI Switch

The UltraAV switch accepts output from up to five HDMI sources and enables selection of one output to be sent on to an HDMI device such as an HDTV or projector. Built-in auto-switching technology detects the active input and automatically switches to it. Or use the included ultra-slim remote control or manual push-button to easily switch between up to five HDMI source devices.

Built-in signal booster for superior signal strength

The UltraAV 5×1 Switch features a built-in signal repeater. This repeater regenerates the audio and video signal allowing the use of up to a 49ft. HDMI cable from the switch’s HDMI output to an HDTV, projector or other HDMI device.

Easily switch between five video sources using the included infrared remote, auto-switching or manually using the onboard push-button. For added flexibility the UltraAV Switch is designed to work with universal remote controls that have the “learn” feature.

Specifications:

• Connectors: 5-input/1-outputs, HDMI Type A female
• Supported resolutions: up to 1080p
• 3D support: yes
• Total data rate: 6.75Gbps (225MHz)
• Supports Consumer Electronics Control (CEC)
• Max. supported cable length: 5m (16ft.) ea. input and 15m (49ft.) output
• Approximate size: 6.7″(W) x 3.8″(L) x 1.45″(H),
• Approximate weight: 10.6 oz.
• Power: adapter 100-240VAC, 50/60Hz, 1A Max.-
• Power: operating 6V, 2A, 12W Max.

Features:

•Supports all resolutions including HD 1080p and 3D
• Fast throughput of up to 6.75 Gbps (225MHz)
• 36-Bit Deep Colour support for billions of colours
• 3-Way switching – auto, manual and remote control
• HDMI Authorised Test Center (ATC) certified
• Works with all HDMI devices – HDCP Compliant

Package Includes:

•5×1 HDMI Switch
•Remote control with battery
•Power adapter
•Set-up instructions
